UNLOCK EARTH

Multistrada V4 Rally



A design that interprets the journey

Multistrada V4 Rally evolves, every line meeting a need, every detail designed for travel. Each element is built to optimise ergonomics and protection, while the brushed steel tank highlights the bike’s character, adding a distinctive touch.

Unmistakable Multistrada design Image

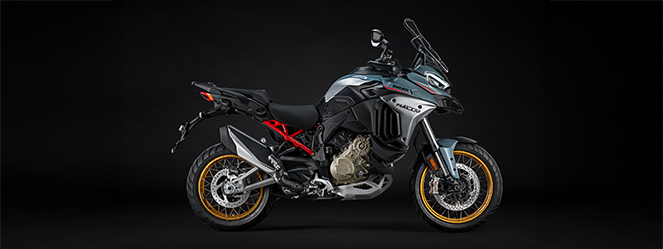

Unmistakable Multistrada design

The design of Multistrada V4 Rally flaunts the distinctive traits that make the Multistrada family so iconic: front-loaded mass, a slim and lightweight tail, and a compact front end. Elements that take the language of Ducati Superbikes and add a crossover-type twist. The front view showcases the double headlight, emphasised by new painted surfaces that add to the stage presence. A new silencer, a sharper profile, and a sound that only adds to the Ducati sports DNA round out the design.

Element design serves a purpose Image

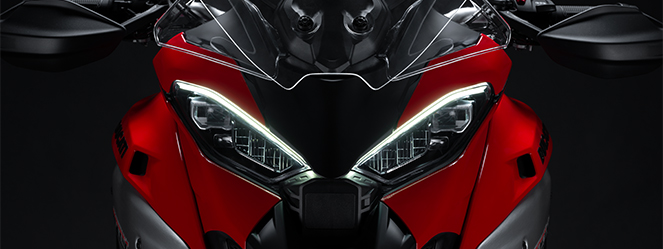

Element design serves a purpose

On the Multistrada V4 Rally, form follows function. The need for greater range led to a redesign of the bike’s front end, with more powerful shoulders that, no higher than before, integrate perfectly with the narrow, ergonomic central section. From side on, the tank becomes a key design feature. Produced in brushed aluminium, it is enhanced with updated “Rally” lettering on the fin and protected by a lateral plate that, as well as protecting surfaces against any knee rubbing, takes on an aesthetic role. The combination of different surfaces and materials gives the front-end a technical, muscular look, highlighting the bike’s distinctive character. Given the Multistrada V4 Rally’s propensity for adventurous travel, the lower skid plate is larger with respect to the Multistrada V4, better protecting the engine from any impacts.

Heightened passenger comfort Image

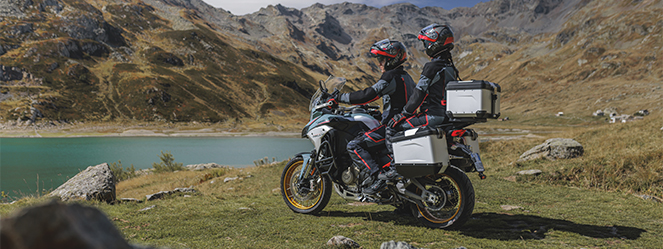

Heightened passenger comfort

The ideal choice for long-range two-up travel, the Multistrada V4 Rally guarantees optimum comfort for the passenger, with side and top case fittings that maximise leg and torso space, to significantly increase the freedom of movement and comfort of the person sitting behind. In addition, a new die-cast support makes the top case more stable and secure, better supporting the passenger. Customisation is also possible, with a choice of different seat heights for rider and passenger as well as a lower suspension kit to suit any two-up configuration. To improve thermal comfort aboard the Multistrada V4 Rally, ducts in the leg area are adjustable and can use the heat released by the engine during the coldest months. The two heat shields, positioned respectively on the rear subframe and on the swingarm, reduce the heat perceived by both rider and passenger. Lastly, two new deflectors located close to where hot air exits the radiator, adjacent to the tank’s aluminium fin, help to keep heat away from the legs, reducing the perceived temperature.

GP-derived aerodynamics Image

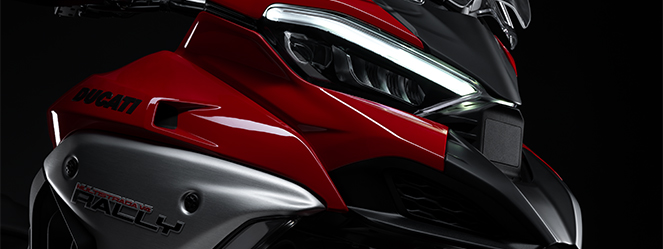

GP-derived aerodynamics

The Multistrada V4 Rally harnesses all the aerodynamics knowledge and experience Ducati has gained in MotoGP to improve comfort, quality and riding pleasure. The front-end features aerodynamic deflectors to increase protection, particularly for the passenger, dragging the aerodynamic air flow further back with respect to the Multistrada V4 and V4 S and extending the area of calm air behind the fairing.

Aesthetics for adventure

Sporty in spirit, elegant in shape. The Multistrada V4 Rally flaunts a bolder look without losing any of the balance and harmony that is Multistrada style. A balanced design for an authentic globetrotting vibe.

Aesthetics for adventure Image

V4 Granturismo: designed to go far

The 1158 cc V4 Granturismo engine combines 170 horsepower with extraordinary control. It offers a smooth, progressive response at any speed, for an exciting yet comfortable riding experience.

  • V4 Granturismo engine: optimised consumption and riding pleasure Image

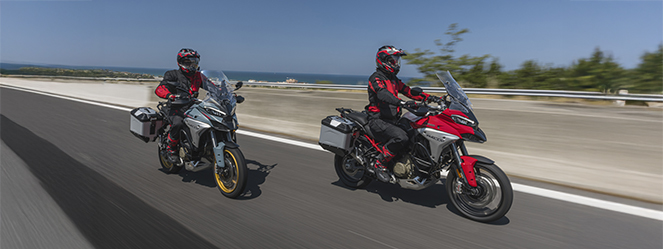

    V4 Granturismo engine: optimised consumption and riding pleasure

    The Multistrada V4 Rally is equipped with the 1158 cc V4 Granturismo engine that can deliver 170 hp (125 kW) at 10,750 rpm and 125 Nm (12.7 kgm) at 8750 rpm. A particularly linear torque curve ensures a smooth and progressive response. Weighing just 66.7 kg, this engine sets a category benchmark for its perfect balance of power and lightness. The V4 Granturismo engine is Euro 5+ approved without compromising on power, all thanks to the extended rear bank deactivation system.

  • Extended rear bank deactivation system for reduced consumption Image

    Extended rear bank deactivation system for reduced consumption

    To reduce consumption and emissions, the Multistrada V4 Rally is equipped with an extended electronic rear bank deactivation strategy, a world first for a production engine.

    The two rear cylinders do not only switch off when the bike is stationary with engine on, but also at low speed in specific conditions.

    As the speed increases or when the rider wants to fully exploit the engine power, the cylinders are reactivated to ensure the engine’s character and performance. The system operates in all Riding Modes, with different calibration for each gear.

  • MotoGP technology: counter-rotating crankshaft Image

    MotoGP technology: counter-rotating crankshaft

    The V4 Granturismo engine adopts sophisticated technical solutions like the MotoGP-derived counter-rotating crankshaft, which opposes the wheel’s gyroscopic inertia. Added to this are dedicated torque curves for each gear, to combine smooth delivery at low rpm with robust mid-range torque and top-end power.

  • New DQS 2.0 for even smoother shifting Image

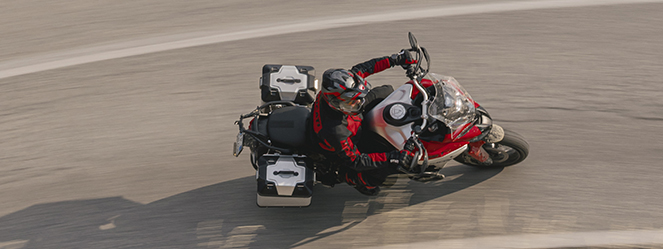

    New DQS 2.0 for even smoother shifting

    The gearbox on the Multistrada V4 Rally is electronically assisted by the new Ducati Quick Shift (DQS) 2.0, which adopts a strategy based solely on the gear drum’s positioning sensor. This solution allows for the use of a connecting rod without microswitch and guarantees the rider more direct feeling, with reduced travel and even faster, more precise shifting.

  • Quality and reliability: valve clearance check at 60,000 km Image

    Quality and reliability: valve clearance check at 60,000 km

    The V4 Granturismo version mounted on the Ducati Multistrada V4 Rally maintains benchmark service intervals, with an oil change scheduled every 15,000 km and the valve clearance check, with adjustment where necessary, every 60,000 km.

Power, control and flow, anywhere.

Smooth power and thrilling performance with the Multistrada V4 Rally, designed to adapt to different riding styles to take you on any adventure. A 30-litre aluminium tank, long-travel suspension, and globetrotting equipment as standard. The V4 Granturismo engine flaunts five customised riding modes and advanced electronics that work in synergy to ensure a limitless riding experience.

MULTISTRADA V4 RALLY Image

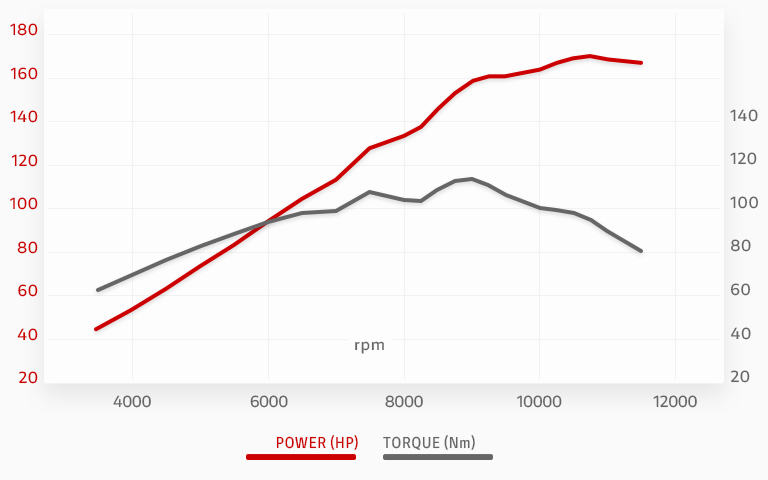

MULTISTRADA V4 RALLY

  • POWER 170 hp (125 kW) @ 10,750 rpm
  • TORQUE 123,8 Nm (12,6 kgm, 91 lb ft) @ 9.000 rpm
  • WET WEIGHT NO FUEL 240kg
  • SEAT HEIGHT Adjustable, 870 mm - 890 mm, 885 mm - 905 mm with high foam seat accessory, 855 mm - 875 mm with mid/low foam seat accessory, 825 mm - 845 mm ( 32,5 in - 33,3 in) with low foam seat accessory, 805 mm - 825 mm (31,7 in - 32,5 in) with low foam seat + low suspension kit accessory
  • VALVE CLEARANCE CHECK 60.000 km
  • DISPLACEMENT 1158 cc
